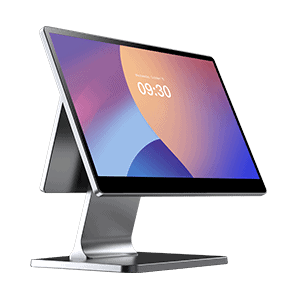

Swan 1 (Gen 2)

Desktop

Elegance Meets Exceptional Performance.

The perfect entry level Desktop POS.

Swan 1 (Gen 2) elevates one of iMin’s flagship innovations by introducing more powerful performance and accessory integration - offering a refined, cutting-edge experience for those who demand the best.

Specifications

Processor

Octa-core A55 2.0GHz

Touch Panel

Multi-point Capacitive Touch Panel;
Secondary Display (Sold Separately) :
Multi-point Capacitive Touch Panel (Optional)
NFC (Optional)

Memory

2GB RAM + 16GB ROM
4GB RAM + 64GB ROM

Display

15.6” 1920 x 1080

Secondary Display

10.1” 1280 x 800

Operating System

Android 13, 64 bit

Connectivity

Ethernet: 1000M, Bluetooth 5.4
Wi-Fi 6, 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

Speaker

1.5W Mono

Environment

Operating temperature: 0 ~ 40℃
Storage temperature: -10 ~ 50℃

Dimensions

363.8 x 185 x 300mm

Weight

Dual Display: 3.3KG
Single Display: 2.75KG

TF Card

Up to 1TB

Power Adapter

Input: 100 ~ 240V
Output: 24V / 1.5A

Peripheral Ports

USB-A 2.0 x 2, USB-A 3.0 x 1, USB-C x 1,
3.5mm Headphone Jack x 1, DC Jack x 1, HDMI x 1,
RJ11 x 1, RJ12 x 1, RJ45 x 1, Pogo pin (12 pin)
TF Card (up to 1TB) x 1,
Port to connect secondary display

* The product pictures and display contents in the above pages are for illustration purposes only. The actual product effects (including but not limited to appearance, color, size) and screen display contents (including but not limited to background UI pictures) might differ.

The performance results are obtained from iMin’s internal laboratory and extracted from specific test environments. In actual use, there might be a difference in performance due to individual differences in product, software, use conditions and environmental factors.

The accessories of the Swan 1 Gen 2 are sold separately according to user needs.
