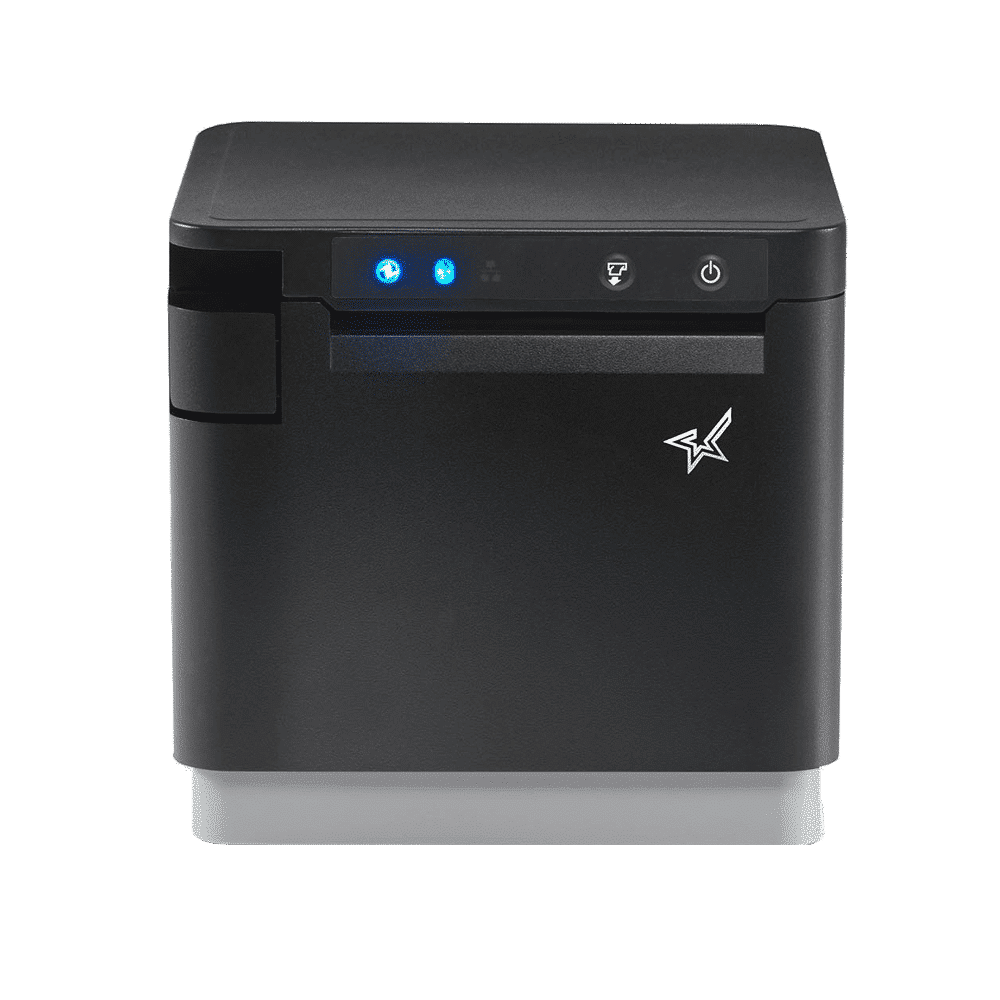

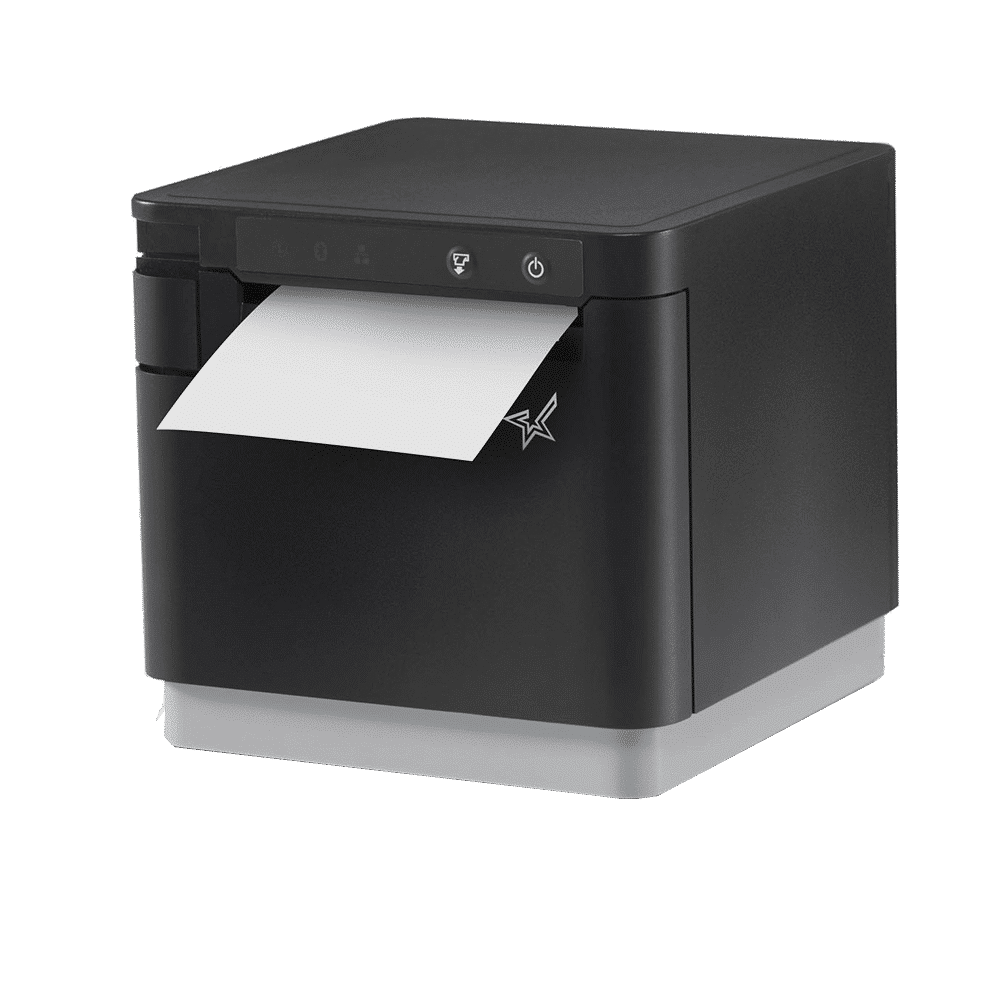

mC-Print3 Thermal Receipt Printer
in Thermal Receipt Printers, Android Compatible, Apple MFI, ChromeOS, mCollection Compact, Ultra-Connected Speed
The mC-Print3 series from Star Micronics’ mCollection® is a compact, versatile 3-inch POS receipt printer designed for modern retail and hospitality environments. It features an IP-rated splash-proof design, front-load paper loading, and multiple connectivity options, including USB, Lightning, Bluetooth, WLAN, LAN, and CloudPRNT/WebPRNT with SteadyLAN® technology. The second generation models (Ci, CBi, WCi, & WCBi) introduce CloudPRNT Next with the MQTT protocol for faster, more reliable cloud-based printing, and Ultra-C connectivity, offering 20W USB-C power and data transfer for seamless connections with iOS, Android, and Windows devices. These enhancements make the mC-Print3 series a future-ready solution for any business.
Key Features
Unique Print Flat technology feature
Easy to integrate through common SDK
Bluetooth, USB, Lightning, WLAN, LAN, CloudPRNT/CloudPRNT Next (select models) SteadyLAN® technology
Peripheral device connectivity – cash drawer, 1D/2D scanners, HID class devices
Hub functionality with select models
Fast charge and communication via “Ultra-C” USB-C power delivery port for iOS, Android, & Windows (select models)
External Hub Capability
The latest mC-Print3 models feature an external hub capability, allowing users to connect USB hubs to pair with multiple peripherals (MCP31 models only). This functionality enables the printers to support various devices, such as barcode scanners, scales, and customer displays, through additional USB ports. By expanding the connectivity options, businesses can streamline their POS systems, making it easier to manage diverse tasks from a single, compact unit.
CloudPRNT Next with the MQTT Protocol
CloudPRNT Next, featuring the MQTT protocol, sets a new standard for cloud-based printing by providing faster and more reliable communication between devices. Unlike traditional HTTP polling, MQTT offers a lightweight and efficient messaging protocol that significantly reduces latency and enhances data transfer speed. This ensures that print jobs are executed swiftly and accurately, making it an ideal solution for high-demand retail and hospitality environments (MCP31 models only).
Ultra-C Technology
Experience high-performance connectivity with Ultra-C technology, which provides 20W USB-C power and data transfer to any mobile device (MCP31 models only). This innovation ensures fast, seamless connections with iOS, Android, and Windows platforms, enhancing operational efficiency. The Ultra-C feature also supports charging while transferring data, making it a versatile and essential component of the latest models in the mC-Print3 thermal receipt printer series
Say Goodbye to Unstable WLAN Signals
SteadyLAN®, available on select mC-Print3 POS receipt printer models, delivers reliable wired Ethernet service to iOS, Android, and Windows devices through a networked printer. This feature supports connections via Lightning (iOS 10 or later required) or USB-C cable, strengthening weak Wi-Fi signals to ensure seamless and stable network access.
| Series ： |
MCPrint3 |
| Model ： |
MCP31CI USB-C (Mfi Certified) + LAN |
| Model ： |
MCP31CBI USB-C (Mfi Certified) + LAN + Bluetooth (Mfi Certified) |
| Model ： |
MCP31L USB (Mfi Certified) + LAN |
| Model ： |
MCP31LB USB (Mfi Certified) + LAN + Bluetooth (Mfi Certified) |
| Model ： |
MCP31C USB-C + LAN |
| Model ： |
MCP31CB USB-C + LAN + Bluetooth (No Mfi) |
General :
| Printing Method |
Direct Line Thermal |
| Print Speed |
250 mm/sec |
| Printer Case Color |
White or Black |
| Models Available |
USB, Lightning, Ethernet, CloudPRNT, Bluetooth* (MCP31CBI / MCP31LB / MCP31CB ), SteadyLAN |
| Emulation Modes |
StarPRNT Mode |
| Print Resolution |
203 dpi (8 dots per mm) |
| No. of Columns |
Star Mode = 48 |
| Font Size |
12 X 24 |
| Character Set |
ANK 95, 32 Int, 128 Graphic plus Chinese, Japanese, Korean, Taiwanese |
| International Code Pages |
Star Mode=48 |
| Bar Codes |
Extended barcode functionality - 9 versions, QR & PDF 417 |
| Line Spacing |
3 mm or 4 mm or programmable |
| Auto Cutter |
Auto Cutter Guillotine (Partial Cut Only) |
| Cover Open Sensor |
Yes |
| Logo Store Capacity |
Unlimited |
| Multiple Copy Support |
Supported through futurePRNT Software |
| Journal Capability |
Supported through futurePRNT Software |
| Label Support |
N/A |
| Drivers Available |
Windows 11, Windows 10, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Class, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android |
Paper :
| Width |
80mm standard, 58mm with paper guide |
| Thicknes |
0.053 ~ 0.075 mm |
| Roll Diameter |
Up to 83 mm |
| Easy - Load |
Easy Front Loading |
| Paper Out Sensor |
Standard |
| Paper Low Sensor |
Standard |
| Maximum Print Width |
80mm paper = 72mm, 58mm paper = 50.8mm |
| Top Margin |
11 mm default |
Power :
| Power Consumption |
Average 1.6 Amp. Printing, 0.1 Amp. Standby |
| Power Supply |
External, new smaller design |
Interfaces :
| Digitally Signed (WHQL) |
Yes |
| Swappable Interfaces |
N/A |
| Connectivity |
MCP31CI - USB-C(Mfi Certified), Ethernet (LAN), WebPRNT/CloudPRNT
MCP31CBI - USB-C(Mfi Certified), Ethernet (LAN), WebPRNT/CloudPRNT, Bluetooth (Mfi Certified)
MCP31L - USB-B, USB-A/Lightning, Ethernet (LAN), WebPRNT/CloudPRNT
MCP31LB - USB-B, USB-A/Lightning, Ethernet (LAN), WebPRNT/CloudPRNT, Bluetooth(Mfi Certified)
MCP31C - USB-C, Ethernet (LAN), WebPRNT/CloudPRNT
MCP31CB - USB-C, Ethernet (LAN), WebPRNT/CloudPRNT, Bluetooth (No Mfi)
|
| Peripheral Drive Circuit |
2 circuits, (24V max. 1A), 1 compulsion input |
Measurement :
| Dimensions |
132 X 140 X 125 (w x h x d)mm |
| Operating Conditions |
Temperature: 5°C to 45°C
Humidity: 10% - 90% RH (without condensation)
|
| Storage Conditions |
Temperature: -20°C to 60°C
Humidity: 10% - 90% RH
|
Reliability :
| MCBF |
60 Million Lines |
| Print Head |
100 KM |
| Auto Cutter |
2 Million Cuts |
| Safety Standards |
UL, C-UL, TuV, FCC, VCCI, EN55022, CE |
