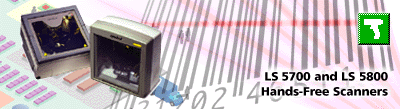

SYMBOL LS 5700 & LS 5800
On-Counter and In-Counter Slot Projection Laser Scanners


High throughput speeds customers effortlessly through check-out; small footprint saves valuable countertop space. Symbol Technologies introduces the LS 5700 and LS 5800, the new standard in hands-free point-of-sale retail laser scanning. These omni-directional mini-slot scanners feature broad yet dense scan fields for unsurpassed throughput and a high first-pass read rate. The expanded working range and aggressive performance combine for fast, accurate scanning with minimal operator effort. The result is quicker, more productive, check-out operations and happier customers. Symbol's LS 5800 is the in-counter scanner that saves you time and energy - pass items over the scan window and the improved optics find the bar code and scan it instantly. Symbol Technologies developed the LS 5700 and LS 5800 specifically for the demanding requirements of point-of-sale scanning. The LS 5700 delivers maximum performance for on-counter applications, while the LS 5800 model is ideal for in-counter installation. Each has a high first-pass read rate and can quickly scan low-contrast, poorly printed and/or damaged bar codes. Both have a large, dense scanning field that reduces the need to orient merchandise to capture and scan bar codes, thereby speeding up the check-out process. Both models feature Code stitching - applied logic for deciphering and rebuilding damaged and truncated bar codes, increasing first-pass read rate and throughput. These scanners utilize the Synapse "smart cable," a Symbol exclusive - a simple cable change connects the LS 5700/LS 5800 to most popular host systems, eliminating the need for costly and/or time consuming scanner modification when migrating host environments. The LS 5700 and LS 5800 are aggressive, cost-effective mini-slot scanners with a choice of orientations to meet any countertop requirement. They're high-performance products designed especially for retailers.

Specifications

Dimensions LS 5700: 6" W x 6" L x 3.8" H/15.2cm W x 15.2cm L x 8.9cm H
LS 5800: 6" W x 6" L x 3.0" H/15.2cm W x 15.2cm L x 7.6cm H
Weight 2.4 lbs./1.1 kg
Optics 675nm. laser diode
Resolution 6 mil
Roll, Pitch, Yaw LS 5700: 360? -30 to 60? ?5?BR>LS 5800: 360? 0 to 90? ?5?/TD>
Depth of Field (Reading Distance) LS 5700: 0 to 8"/0 to 20 cm, UPC 100%
LS 5800: 0 to 6"/0 to 15 cm, UPC 100%
Scan Pattern 16 interlocking scan lines
Readable Codes UPC/EAN/JAN, Code 39, Code 128, EAN/UCC 128, 1 2 of 5, Codabar,
Interface IBM 468X, 469X; OCIA; RS-232; PC/P0S Keyboard Wedge
Electrical +5VDC +/- 10% @ 500ma (operating)
